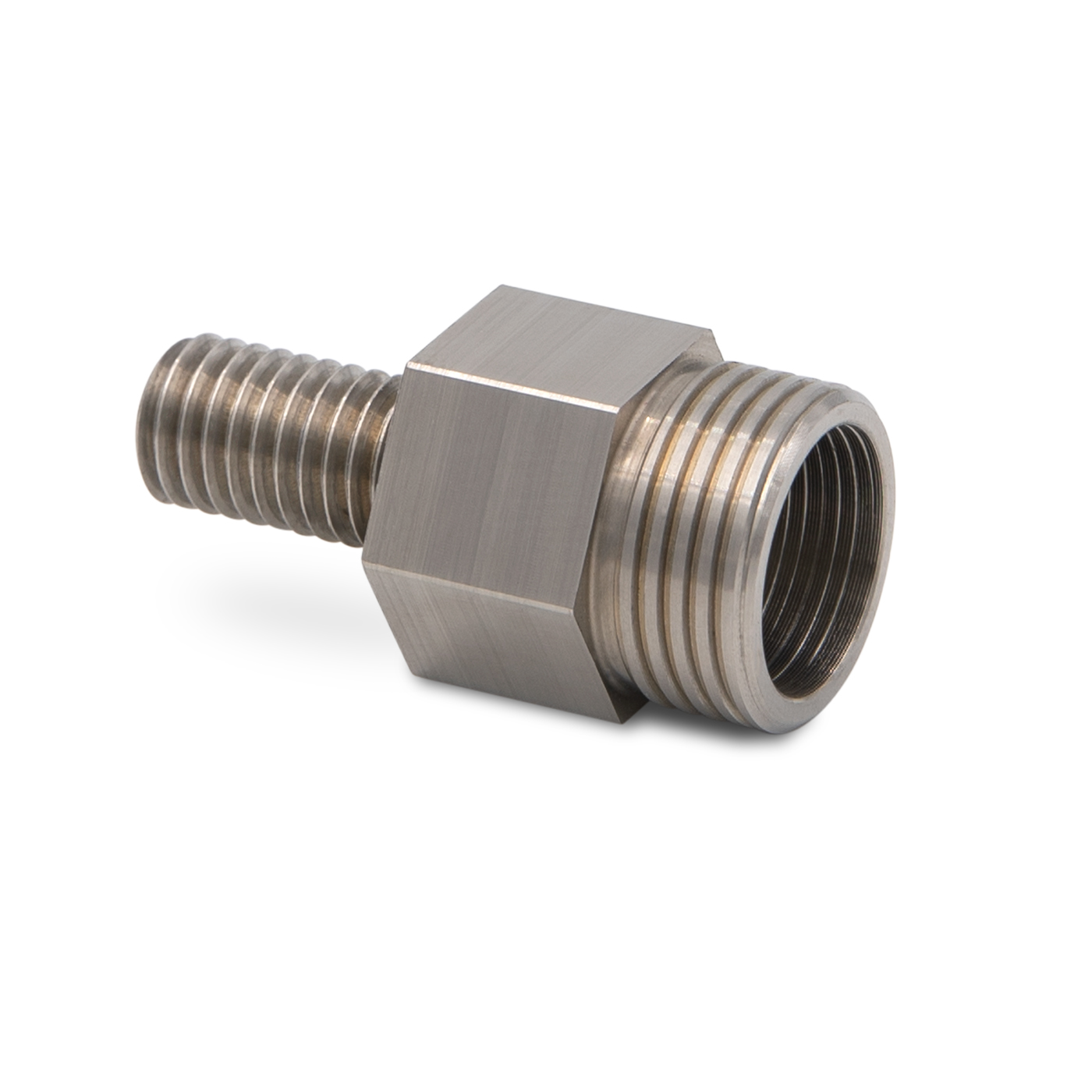

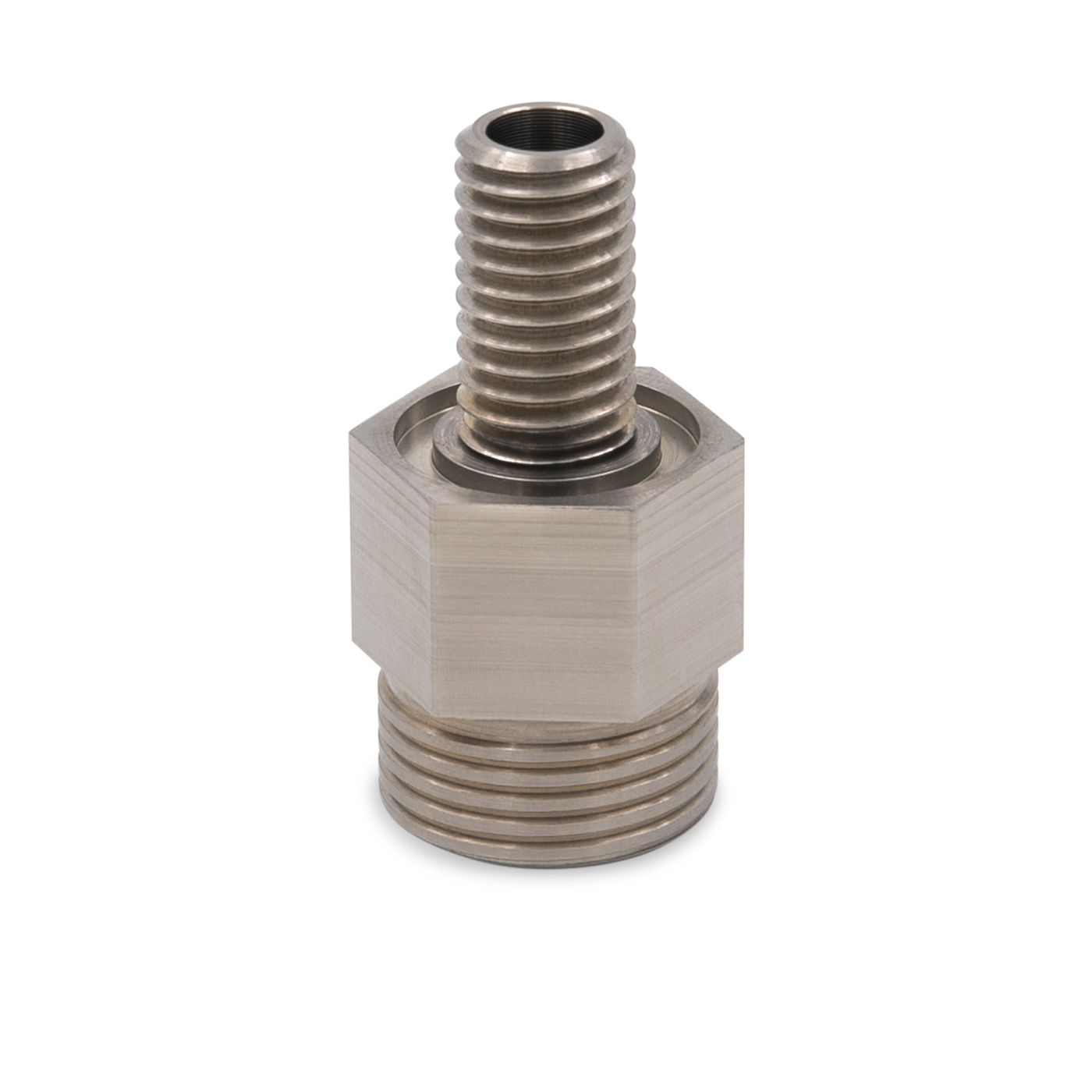

Baromax Underwater Connector
Bulkhead Backshell Titanium
$60.00
Quantity
Shop our Popular Product Kits
Never compromise, get more for less
Features

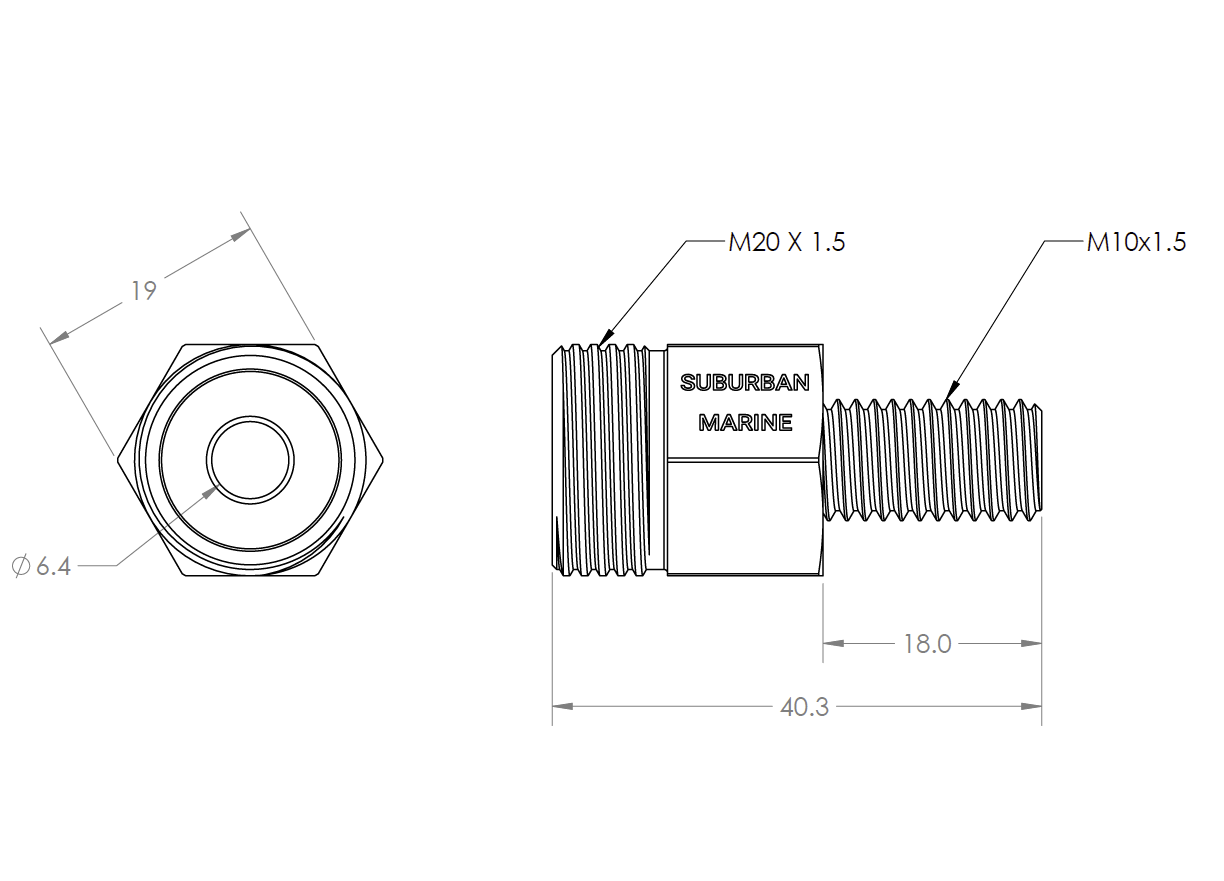

Specifications:
Material: 6AL4V Titanium
Thread: M10x1.5
Includes: O-Ring P/N BM-OR-A
Harmonized Code: 8538.90.8180
In Stock
Reduce lead time
Flexible
8-pin, 3-pin & more soon
Gigabit Ethernet Ready
Minimize untwisted cable length
Powerful
360° contacts
Rugged
10,000 psi pressure rating
Stay Connected
Locking ring mates & unmates
the suburban marine difference
Benefits
COMMERCIAL ROV
COMMERCIAL ROV
The Baromax line of underwater connectors are designed to eliminate lead time and increase up time. Equipment can be standardized and customized at the point of need.
EDUCATION
EDUCATION
Baromax can be configured rapidly at the point-of-need enabling support for multiple payloads and missions for the next generation of ocean innovators.
IMAGING
IMAGING
The Baromax allows more interface flexibility by supporting high speed ethernet signals and low speed auxiliary signals for modern underwater camera systems.
EXPLORATION
EXPLORATION
The Baromax series is a scalable tool that enables rapid and agile ocean innovation. Connectors can be changed between low/high speed, and power with one connector series.
direct support
Our team is always working to improve your experience. Take a look at these quick start guides. Get in touch with us if you have more questions!
Why baromax epoxy?
The Baromax Epoxy is an important accessory you do not want to forget. One bottle can complete up to 15 assemblies and is rated for harsh underwater environments with superior chemical resistance for moisture in continuous full submersion.
