Baromax Underwater Connector

Bulkhead Backshell M10 Stainless Steel

$20.00

SKU BM-A-BH-B-B-1 Categories ,

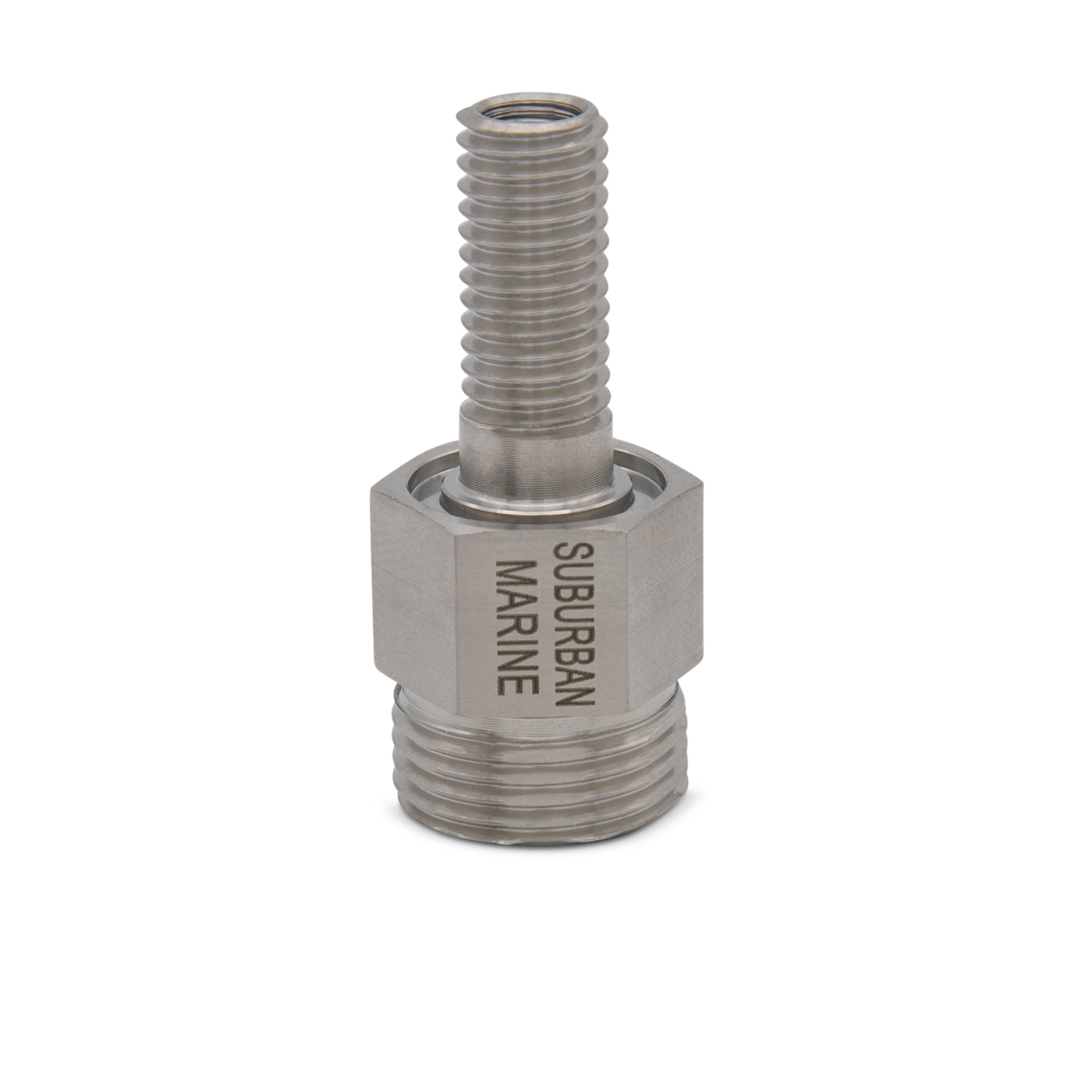

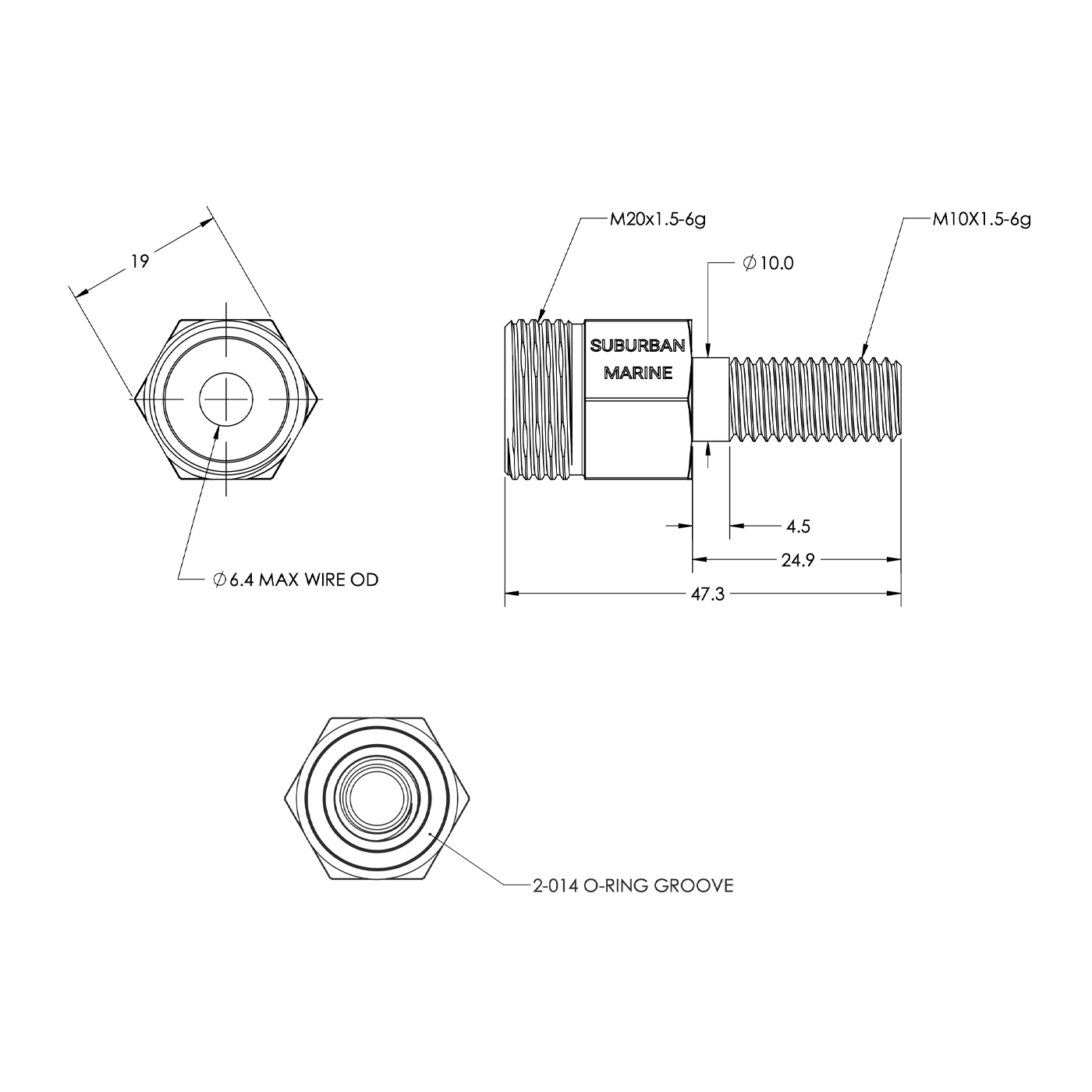

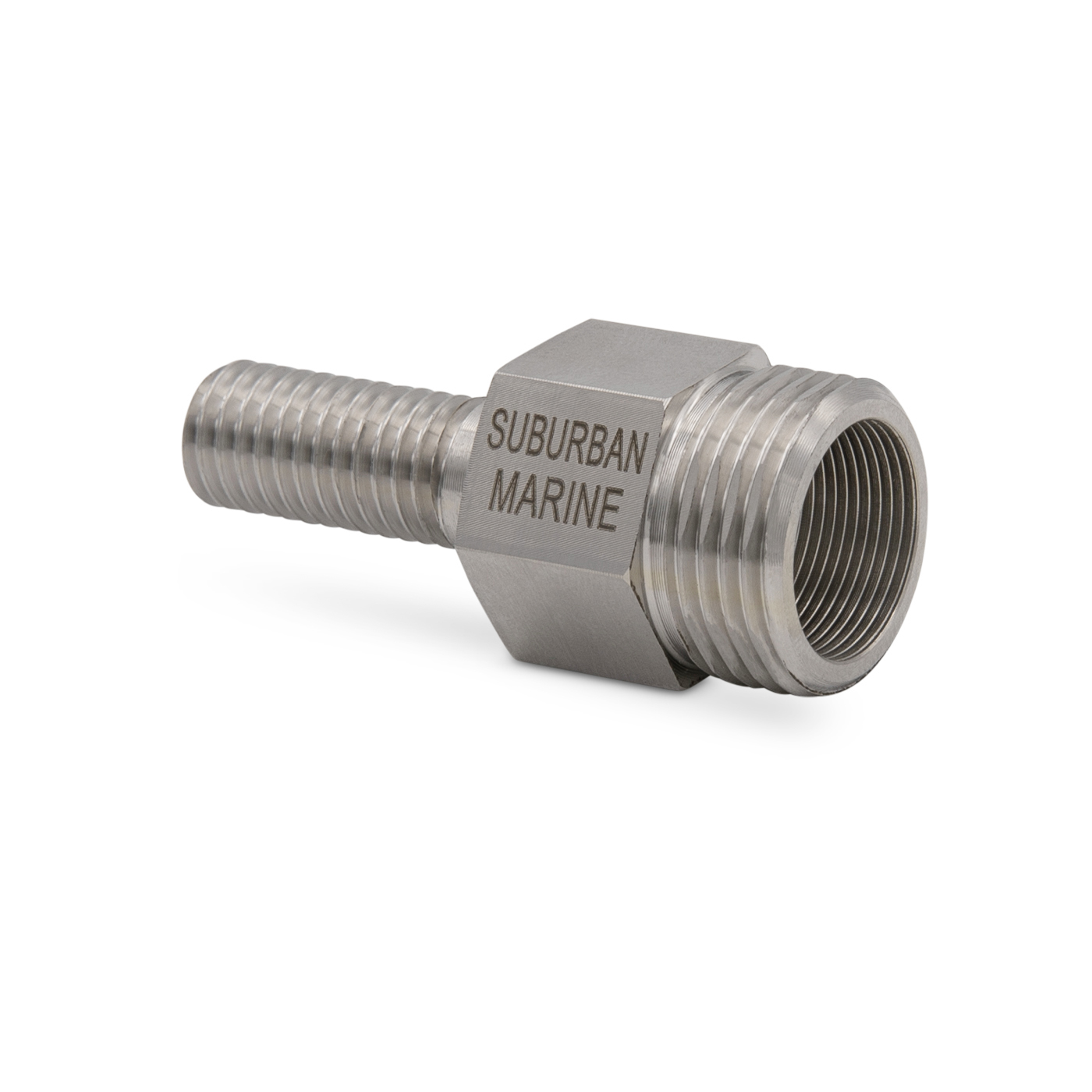

The Baromax bulkhead backshell with an M10 thread for direct installation into Blue Robotics endcaps.  There’s no need to tap your endcaps for a 7/16-20 thread.  Just install this M10 bulkhead backshell directly to terminate your Fathom tether and more!

Please Note: Epoxy NOT Included

> Data Sheet

Quantity

Shop our Popular Product Kits

Never compromise, get more for less

Features



Download Data Sheet

Specifications:

Material: 316 Stainless Steel
Thread: M10

Includes:

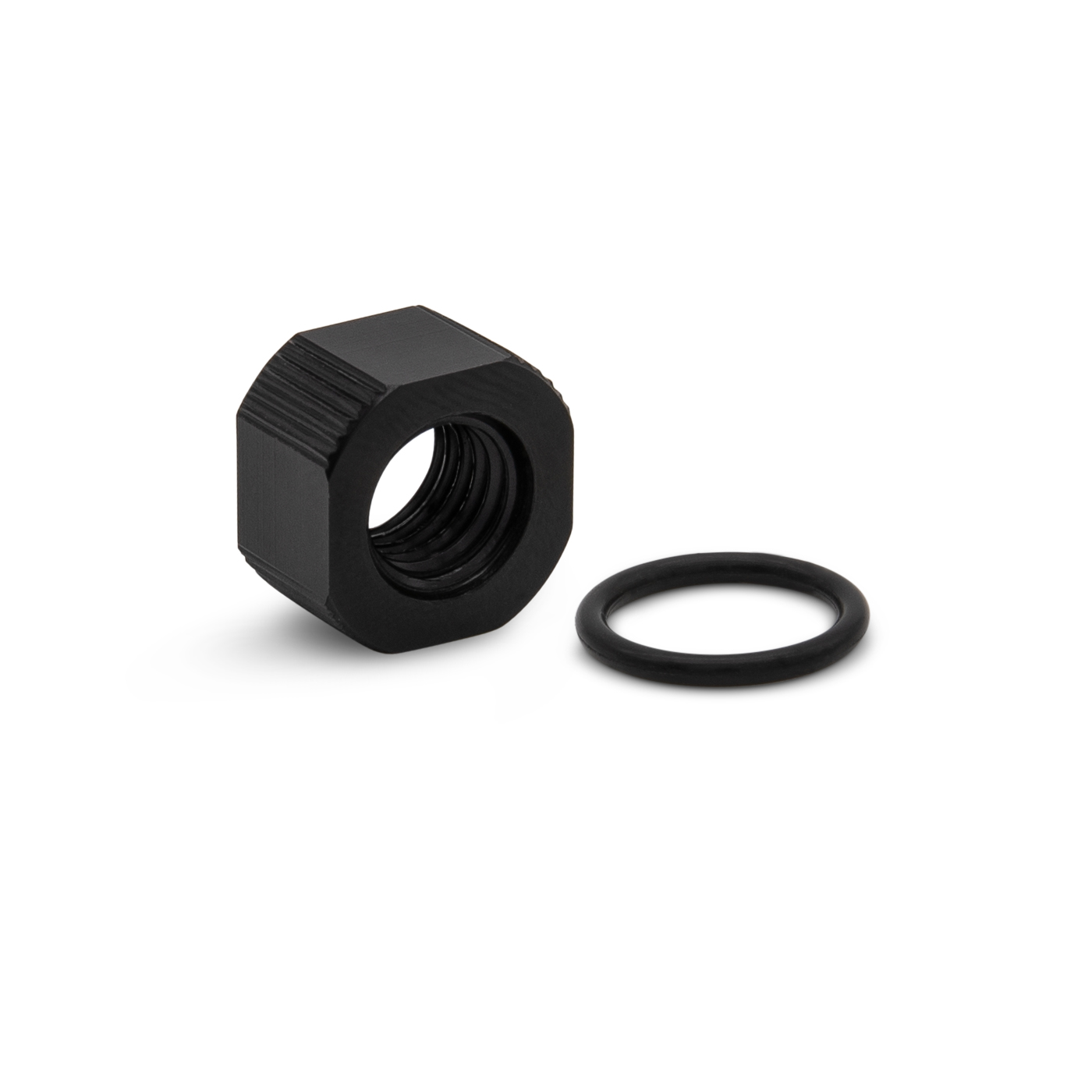

O-Ring P/N BM-OR-A
M10 Nut BM-A-N-C-C

Harmonized Code: 8538.90.8180

In Stock

Reduce lead time

Flexible

8-pin, 3-pin & more soon

Gigabit Ethernet Ready

Minimize untwisted cable length

Powerful

360° contacts

Rugged

10,000 psi pressure rating

Stay Connected

Locking ring mates & unmates

the suburban marine difference

Benefits

COMMERCIAL ROV

COMMERCIAL ROV

The Baromax line of underwater connectors are designed to eliminate lead time and increase up time. Equipment can be standardized and customized at the point of need.

EDUCATION

EDUCATION

Baromax can be configured rapidly at the point-of-need enabling support for multiple payloads and missions for the next generation of ocean innovators.

IMAGING

IMAGING

The Baromax allows more interface flexibility by supporting high speed ethernet signals and low speed auxiliary signals for modern underwater camera systems.

EXPLORATION

EXPLORATION

The Baromax series is a scalable tool that enables rapid and agile ocean innovation. Connectors can be changed between low/high speed, and power with one connector series.

direct support

Our team is always working to improve your experience. Take a look at these quick start guides. Get in touch with us if you have more questions!

How It Works

User Guides & Tutorials

Why baromax epoxy?

The Baromax Epoxy is an important accessory you do not want to forget. One bottle can complete up to 15 assemblies and is rated for harsh underwater environments with superior chemical resistance for moisture in continuous full submersion.
